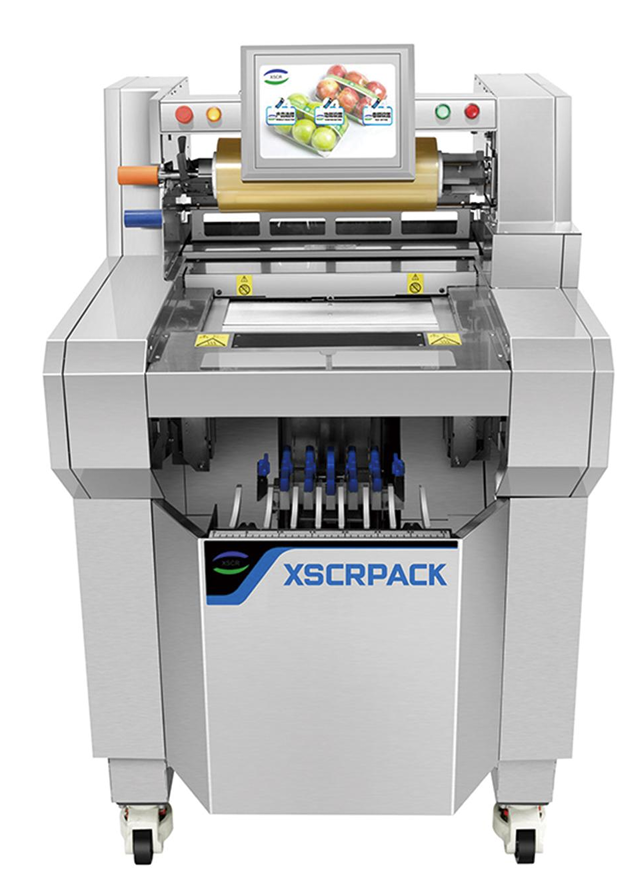

Automatic Cling Film Wrapping Machine | Fresh Food Packaging Solution
Key Features
• Fully Automated Process – Completes material feeding, wrapping, sealing, and cutting in one streamlined workflow.
• Smart Integration – Optional functions include intelligent identification, weighing, barcode printing, product transport, traceability, data batch management, and online printing.
• Convenient Control – Programmable controller ensures quick adjustments to product specifications and simplifies operation.
• Superior Packaging Quality – Strong sealing, clear embossing, smooth finish, and hygienic output guarantee a safe and attractive final product.
Technical Specifications
• Model: XSCR-15B
• Best Speed: 15 bags/min
• Packaging Length: 80–350mm
• Packaging Width: 80–230mm
• Package Height: 10–150mm
• Package Weight: 100–300g
• Plastic Wrap Width: 350–550mm
• Plastic Wrap Thickness: 0.09–0.12mm
• Max Roll Diameter: 160mm (1000m per roll)
• Screen: 10.2” TFT color touch screen (1024×600, 16:9 ratio)
• Power Supply: AC220V/50Hz (customizable)
• Power Consumption: 1860W (standby 30W)
• Label Printing: Thermal, width 15–110mm, thickness 0.06–0.2mm
• Printing Resolution: 203dpi (8 dots/mm), black & white
• Max Label Roll Diameter: 127mm, core diameter 24.4mm
Applications
This machine is designed for flexible packaging of small to medium-sized products, ideal for:
• Fresh meat & poultry
• Fruits & vegetables
• Frozen foods

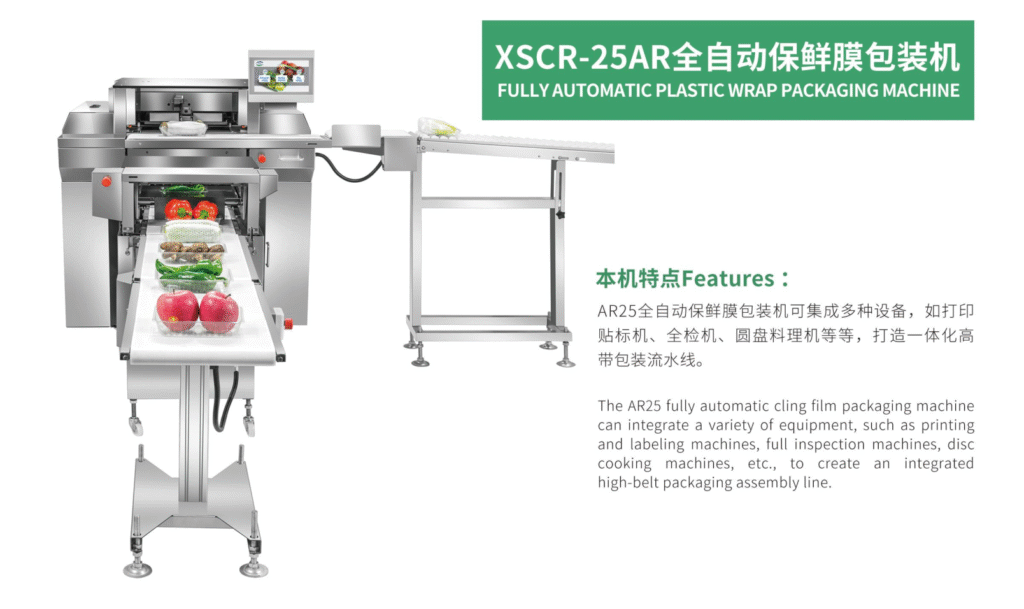

Cling Film Wrapping Machine – Model XSCR-25AR
Basic Information
| Item | Specification |
|---|---|
| Model | XSCR-25AR |
| Best Speed | 25 bags/min |
| Packaging Length | 120–350 mm |
| Packaging Width | 95–220 mm |
| Packaging Height | 10–130 mm |
| Packaging Weight | 50–4500 g |
Packaging Material
| Item | Specification |
|---|---|
| Plastic Wrap Width | 350–550 mm |
| Plastic Wrap Thickness | 0.09–0.12 mm (machine material) |
| Plastic Wrap Maximum Straight | Ø160 mm (roll length 1000 m) |
Configuration
| Item | Specification |
|---|---|
| Screen | 10.2-inch TFT color touch screen (16:9 ratio) |
| Power Supply | AC220V/50Hz (AC110V/60Hz optional) |
| Power Consumption | 1400W (ultra-low standby 30W) |
| Body Material | 304 stainless steel |
| Major Electrical Components | Schneider |
| Control System | Self-developed (Xiao Sen Chang Rong) |
| Main Motor | Lesai brand |
| Working Humidity | 10–90% RH |
| Ambient Temperature | 10–30°C |
Dimension
| Item | Specification |
|---|---|
| Outer Dimensions | L840 mm × W888 mm × H1415 mm |
| Net Weight | 275 kg |
Highlights
High-performance automatic cling film wrapping for trays and food packs
Compact and hygienic stainless-steel structure
User-friendly 10.2” color touchscreen interface
Energy-efficient system with low standby power
Reliable components from international brands

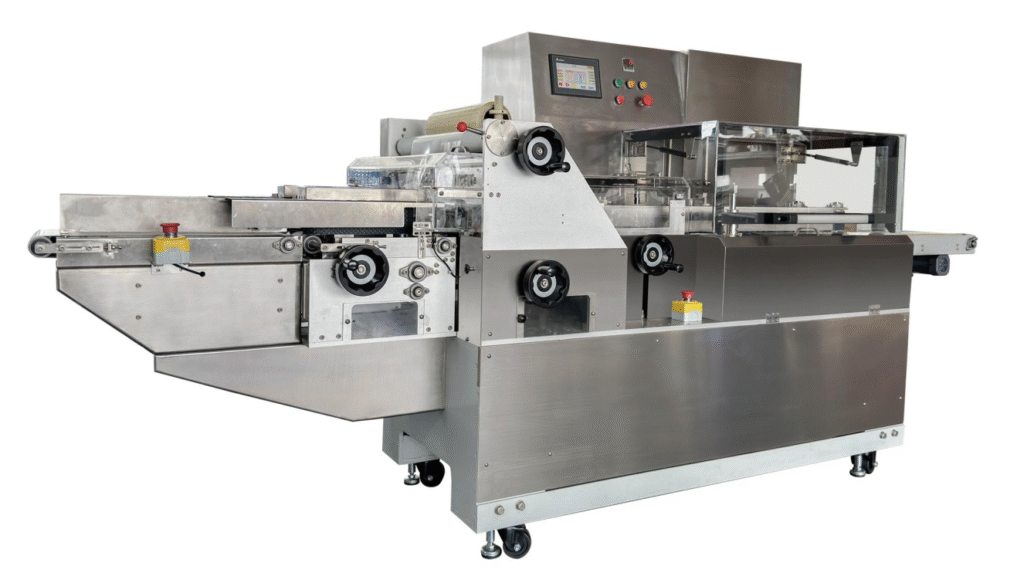

XSCR-960 Fully Automatic Cling Film Packaging Machine
Overview
The XSCR-960 is a high-performance automatic cling film wrapping system designed for efficient and hygienic packaging of food trays.
It can be integrated with a wide range of auxiliary equipment — such as printing and labeling systems, full inspection units, and disc cooking machines — to form a fully automated, high-speed packaging assembly line.
Technical Specifications
| Item | Specification |
|---|---|
| Model | XSCR-960 |
| Packing Speed | 30–60 packs/min |
| Tray Size | L: 95–410 mm W: 70–220 mm H: 20–60 mm |
| Maximum Outer Diameter of Film | Ø200 mm |
| Product Height | Up to 90 mm |
| Packaging Width | 200–450 mm |
| Power | 4.5 kW |
| Voltage | AC 220V |
| Machine Dimensions | L: 3400 mm × W: 1100 mm × H: 1500 mm |
Key Features
Fully automatic cling film wrapping for trays and food packs
Integration-ready with printers, labelers, and inspection systems
Consistent wrapping tension for smooth and tight sealing
Hygienic design suitable for fresh food, produce, and meat products
Stable performance with high packaging efficiency
